Agitator Seal

Type: CSA

Features:


DOWNLOAD CATALOG
  • Double Seal
  • Unbalance seal
  • Cartridge unit
  • Easy installation
  • Independent of direction of rotation
  • Multiple springs rotating
  • Liquid-lubricated
  • Cartridge unit
  • For glass-lined vessels
  • Advantages
  • Ready-to-fit and factory-tested unit
  • Available with or without bearing
  • Suitable for standardizations
  • Seal can be applied at higher pressure and rotating speed than specified by DIN

Application:

This seal is used in chemical industries , process industries on top entry agitators, dryers, mixers etc.

Operating Condition:

  • Temperature : 35°C to 250°C
  • Pressure : Upto 20 bar
  • Speed : 5 m/s
Seal size ØA ØB ØC ØD L L1 N X M
1.375 25 75 150 130 240 280 4 X M10
1.625 30 80 155 135 240 280 4 X M10
1.75 35 85 160 140 240 280 4 X M10
2 40 90 165 145 245 285 4 X M10
2.125 45 95 175 155 245 285 4 X M10
2.375 50 100 175 155 245 285 4 X M10
2.625 55 105 200 175 276 315 6 X M10
2.75 60 110 205 180 276 315 6 X M10
3 65 115 210 185 276 315 6 X M10
3.25 70 120 215 190 282 320 6 X M10
3.375 75 125 220 195 282 320 6 X M10
3.625 80 130 225 200 282 320 6 X M10
3.75 85 135 250 220 290 330 8 X M10
4 90 140 255 225 300 330 8 X M10
4.125 95 145 275 245 340 380 8 X M10
4.375 100 160 280 250 340 380 8 X M10
4.5 105 165 285 255 340 380 8 X M10
4.75 110 170 290 260 345 385 8 X M10
5 115 175 300 265 345 385 8 X M10
5.125 120 180 300 270 345 385 8 X M10
5.375 125 195 320 275 345 385 8 X M10
5.5 130 200 320 280 375 415 8 X M10
6 140 210 345 295 380 420 8 X M10

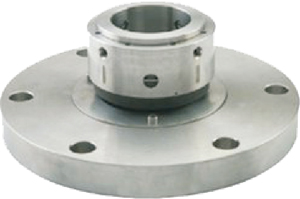

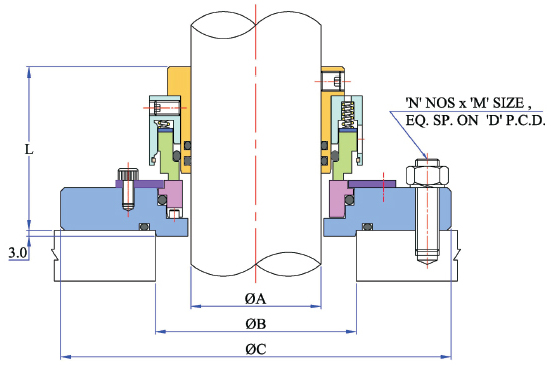

Type: CS 5A

Features:

  • Single Seal
  • Balance seal
  • Outside mounted seal
  • Dry running

Application:

This seals is used for top entry agitator, mixer, chemical industry, pharmaceutical industry food and beverage industry, non-toxic media

Operating Condition:

  • Temperature : Ambt to 120°C
  • Pressure : Upto 10 bar
  • Speed : 120 rpm
Seal size ØA ØB ØC D(P.C.D) N M L
1 15 40 105 90 4 M8 60
1.125 20 45 110 95 4 M8 60
1.375 25 50 120 105 4 M8 65
1.5 30 60 135 115 4 M10 65
1.75 35 65 140 120 4 M10 80
2 40 70 150 130 4 M10 80
2.125 45 75 155 135 4 M10 80
2.375 50 80 160 140 4 M10 80
2.5 55 85 165 145 4 M10 80
2.75 60 90 170 150 4 M10 80
3 65 100 180 160 6 M10 80
3.125 70 105 185 165 6 M10 80
3.375 75 110 190 170 6 M10 80
3.5 80 120 200 175 6 M12 80
3.75 85 130 205 185 6 M12 80
4 90 140 210 190 6 M12 80

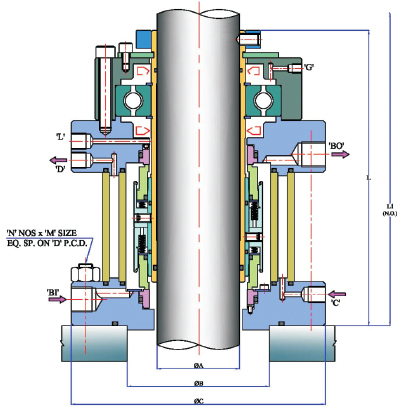

Type: CSA-J

Features:

  • Balanced
  • Double Back to Back
  • Independent of direction of rotation
  • Cartridge unit

Application:

This seal is used in chemical industries, pharmaceutical industry agitator and reactors, light hydrocarbons.

Operating Condition:

  • Temperature : Ambt to 205¡ÆC
  • Pressure : Upto 25 bar
  • Speed : 150 rpm
Seal SIZE SHAFT SIZE ØA ØB ØC D(P.C.D) L L1(N.O.) N X M
1.625'' 25 75 150 130 240 280 4,M10
1.875'' 30 80 155 135 240 280 4,M10
2.000'' 35 85 160 140 240 280 4,M10
2.250'' 40 90 165 145 245 290 4,M10
2.500'' 45 95 175 155 245 290 4,M10
2.625'' 50 100 175 155 245 290 4,M10
2.875'' 55 105 200 175 280 320 6,M12
3.125'' 60 110 205 180 280 320 6,M12
3.500'' 70 120 215 190 285 325 6,M12
3.875'' 80 130 225 200 285 325 6,M12
5.000'' 100 160 280 250 350 390 8,M16
5.750'' 120 180 300 270 355 395 8,M16

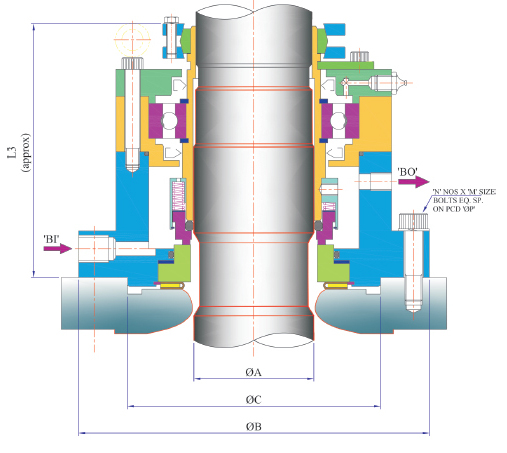

Type: CSA-MF

Features:

  • Balanced
  • Cartridge unit
  • For glass lined reactor
  • Independent of direction of rotation

Application:

This seal is used in chemical industries , pharmaceutical industry, glass lined agitators and reactors, non toxic and toxic media.

Operating Condition:

  • Temperature : -40¡ÆC to +205¡ÆC
  • Pressure : Upto 20 bar
  • Speed : 5 m/s
SHAFT SIZE ØA ØC ØB N' X ' M' ØP L3
2 40 110 175 4 X M16 145 160
2.375 50 176 240 8 X M18 210 165
2.75 60 176 240 8 X M18 210 170
3 80 204 275 8 X M20 240 175
4.375 100 234 305 8 X M20 270 185
5.375 125 260 330 8 X M20 295 210
6 140 313 395 12 X M22 350 215

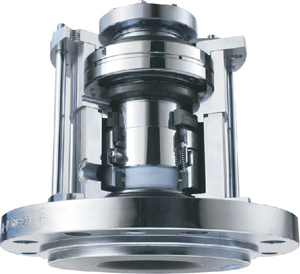

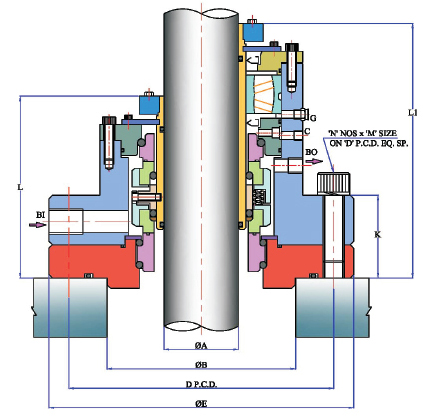

Type: CSA-HP

Features:

  • Double seal
  • Unbalanced
  • Outside mounted seal
  • Liquid lubricated independent of direction of rotation

Application:

This seals is used for top entry agitator, mixer, chemical industry, pharmaceutical industry food and beverage industry, non-toxic media.

Operating Condition:

  • Temperature : -20¡ÆC to +180¡ÆC
  • Pressure : Upto 30 bar
  • Speed : 5 m/s
Seal size ØA ØB D(P.C.D) ØE L L1 N X M
40 40 80 170 205 150 205 6 X M16
50 50 100 200 235 155 220 8 X M16
60 60 120 225 260 175 245 8 X M16
80 80 145 260 300 195 275 8 X M20
100 100 170 280 320 205 290 8 X M20
120 120 190 310 350 210 300 8 X M20
140 140 215 345 385 210 315 12 X M20
160 160 240 395 445 235 350 12 X M24
180 180 260 430 480 240 365 12 X M24
200 200 290 420 470 250 365 12 X M24
